Regulation (EU) 2021/1338
Ranges and resolutions for the numerical elements included in METAR and SPECI |
|||||
Ref. |
Elements |
Range |
Resolution |
||
1 |
Runway: |
(no units) |
01–36 |
1 |
|
2 |
Wind direction: |
°true |
000–360 |
10 |
|
3 |
Wind speed: |
KT |
00–99 P99 |
1 N/A (100 or greater) |
|
4 |
Visibility: |
M |
0000–0750 |
50 |
|
|
|
M |
0800–4 900 |
100 |
|
|
|
M |
5 000–9 000 |
1 000 |
|
|
|
M |
10 000 or greater |
0 (fixed value: 9 999) |
|
5 |
Runway visual range: |
M |
0000–0375 |
25 |
|
|
|
M |
0400–0750 |
50 |
|
|
|
M |
0800–2 000 |
100 |
|
6 |
Vertical visibility: |
100’s FT |
000–020 |
1 |
|
7 |
Clouds: height of cloud base: |
100’s FT |
000–099 100-200 |
1 10 |
|
8 |
Air temperature: Dew-point temperature: |
°C |
–80 – +60 |
1 |
|
9 |
QNH: |
hPa |
0850–1 100 |
1 |
|
10 |
Sea-surface temperature: |
°C |
–10 – +40 |
1 |
|
11 |
State of the sea: |
(no units) |
0–9 |
1 |
|
12 |
Significant wave height: |
M |
0–999 |
0,1 |
|
GM1 to Appendix 1 ‘Template for METAR and SPECI’
ED Decision 2022/004/R
METAR AND SPECI — EXAMPLES OF ELEMENTS
Non-exhaustive examples of the different elements used in the formulation of METAR and SPECI are provided below.
METAR and SPECI — examples of elements Note 1: Consult the ‘Template for METAR and SPECI’ (Appendix 1 to Annex V (Part-MET) to Regulation (EU) 2017/373) to identify the mandatory (M), the conditional (C) or the optional (O) elements. Note 2: The ranges and resolutions for the numerical elements included in the METAR and SPECI are provided in Appendix 1 to Annex V (Part-MET) to Regulation (EU) 2017/373. Note 3: The row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the METAR and SPECI. They do not correlate with the ‘Ref.’ column in the ‘Template for METAR and SPECI’ in Appendix 1 to Annex V (Part-MET) to Regulation (EU) 2017/373. Refer to the ‘Element’ column when cross-referencing. |
||
Ref. |
Element |
Examples |
1 |
Identification of the type of report |
METAR METAR COR SPECI |
2 |
ICAO location indicator |
YUDO |
3 |
Time of the observation |
221630Z |
4 |
Identification of an automated report or a missing report |
AUTO NIL |
5 |
Surface wind |
24008KT VRB02KT 19012KT 00000KT 140P99KT 12006G18KT 24016G28KT 02010KT 350V070 ///10KT 240//KT /////KT |
6 |
Visibility |
0350 7000 9999 0800 //// 2000 1200NW 6000 2800E 6000 2800 CAVOK (70Replacing visibility, runway visual range, present weather, and cloud elements, when applicable.) |
7 |
Runway visual range |
R32/0400 R12R/1700 R16L/0650 R16C/0500 R16R/0450 R17L/0450 R14L/P2000 R10/M0050 R16L///// R10///// R08L///// R08R/0400 R12/1100U R26/0550N R20/0800D R12/0700 |
8 |
Present weather |
RA HZ VCFG +TSRA FG VCSH +DZ VA VCTS –SN MIFG VCBLSA +TSRASN –SNRA DZ FG +SHSN BLSN UP FZUP // |
9 |
Cloud |
FEW015 SCT010 OVC020 BKN016TCU SCT008 BKN025CB BKN025/// //////CB NSC NCD VV005 VV/// BKN/// ///015 ///////// ////// BKN///TCU |
10 |
Air temperature and |
17/10 02/M08 M01/M10 ///10 17/// ///// |
11 |
Pressure values |
Q0995 Q1022 Q//// |
12 |
Supplementary information |
REFZRA RETSRA
WS R03 WS ALL RWY WS R18C
W15/S2 W12/H75 W///S3 WM01/S/ W///H104 W17/H/// W///H/// W///S/ |
13 |
Trend forecast |
NOSIG BECMG FEW020 TEMPO 25036G50KT BECMG FM1030 TL1130 CAVOK BECMG TL1700 0800 FG BECMG AT1800 9000 NSW BECMG FM1900 0500 +SNRA BECMG FM1100 SN TEMPO FM1130 BLSN TEMPO FM0330 TL0430 FZRA TEMPO TL1200 0600 BECMG AT1200 8000 NSW NSC BECMG AT1130 OVC010 TEMPO TL1530 +SHRA BKN012CB |
Regulation (EU) 2017/373
Fixed areas of coverage of WAFS forecasts in chart form

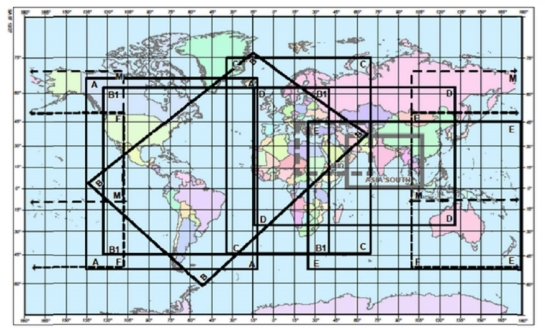

Mercator projection
CHART |
LATITUDE |
LONGITUDE |
|
CHART |
LATITUDE |
LONGITUDE |
A |
N6700 |
W13724 |
|
D |
N6300 |
W01500 |
A |
N6700 |
W01236 |
|
D |
N6300 |
E13200 |
A |
S5400 |
W01236 |
|
D |
S2700 |
E13200 |
A |
S5400 |
W13724 |
|
D |
S2700 |
W01500 |
ASIA |
N3600 |
E05300 |
|
E |
N4455 |
E02446 |
ASIA |
N3600 |
E10800 |
|
E |
N4455 |
E18000 |
ASIA |
0000 |
E10800 |
|
E |
S5355 |
E18000 |
ASIA |
0000 |
E05300 |
|
E |
S5355 |
E02446 |
B |
N0304 |
W13557 |
|
F |
N5000 |
E10000 |
B |
N7644 |
W01545 |
|
F |
N5000 |
W11000 |
B |
N3707 |
E06732 |
|
F |
S5242 |
W11000 |
B |
S6217 |
W05240 |
|
F |
S5242 |
E10000 |
B1 |
N6242 |
W12500 |
|
M |
N7000 |
E10000 |
B1 |
N6242 |
E04000 |
|
M |
N7000 |
W11000 |
B1 |
S4530 |
E04000 |
|
M |
S1000 |
W11000 |
B1 |
S4530 |
W12500 |
|
M |
S1000 |
E10000 |
C |
N7500 |
W03500 |
|
MID |
N4400 |
E01700 |
C |
N7500 |
E07000 |
|
MID |
N4400 |
E07000 |
C |
S4500 |
E07000 |
|
MID |
N1000 |
E07000 |
C |
S4500 |
W03500 |
|
MID |
N1000 |
E01700 |

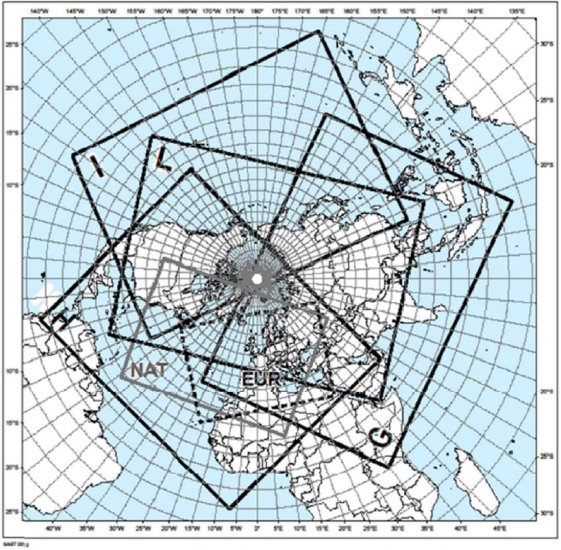

Polar stereographic projection (northern hemisphere)
CHART |
LATITUDE |
LONGITUDE |
|
CHART |
LATITUDE |
LONGITUDE |
EUR |
N4633 |
W05634 |
|
I |
N1912 |
E11130 |
EUR |
N5842 |
E06824 |
|
I |
N3330 |
W06012 |
EUR |
N2621 |
E03325 |
|
I |
N0126 |
W12327 |
EUR |
N2123 |
W02136 |
|
I |
S0647 |
E16601 |
G |
N3552 |
W02822 |
|
L |
N1205 |
E11449 |
G |
N1341 |
E15711 |
|
L |
N1518 |
E04500 |
G |
S0916 |
E10651 |
|
L |
N2020 |
W06900 |
G |
S0048 |
E03447 |
|
L |
N1413 |
W14338 |
H |
N3127 |
W14836 |
|
NAT |
N4439 |
W10143 |
H |
N2411 |
E05645 |
|
NAT |
N5042 |
E06017 |
H |
N0127 |
W00651 |
|
NAT |
N1938 |
E00957 |
H |
N0133 |
W07902 |
|
NAT |
N1711 |
W05406 |

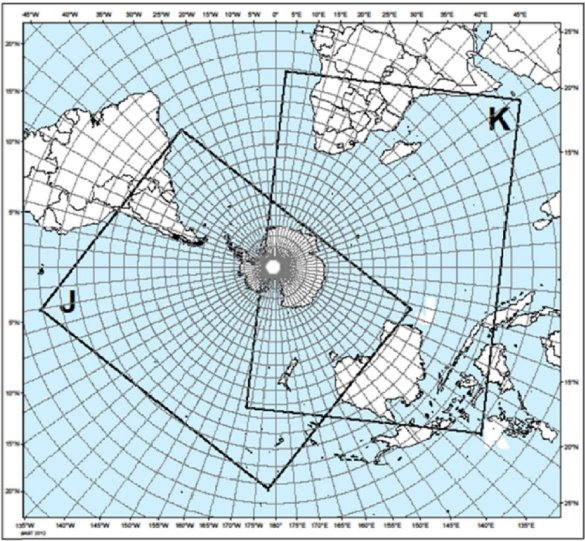

Polar stereographic projection (southern hemisphere)
CHART |
LATITUDE |
LONGITUDE |
J |
S0318 |
W17812 |
J |
N0037 |
W10032 |
J |
S2000 |
W03400 |
J |
S2806 |
E10717 |
K |
N1255 |
E05549 |
K |
N0642 |
E12905 |
K |
S2744 |
W16841 |
K |
S1105 |
E00317 |
Regulation (EU) 2021/1338
Ranges and resolutions for the numerical elements included in TAF |
|||||
Ref. |
Elements |
Range |
Resolution |
||
1 |
Wind direction: |
° true |
000–360 |
10 |
|
2 |
Wind speed: |
KT |
00–99 |
1 |
|
3 |
Visibility: |
M |
0000–0750 |
50 |
|
|
|
M |
0800–4 900 |
100 |
|
|
|
M |
5 000–9 000 |
1 000 |
|
|
|
M |
10 000 or greater |
0 (fixed value: 9 999) |
|
4 |
Vertical visibility: |
100’s FT |
000–020 |
1 |
|
5 |
Cloud: height of cloud base: |
100’s FT |
000–099 100–200 |
1 10 |
|
6 |
Air temperature (maximum and minimum): |
°C |
–80 – +60 |
1’ |
|
GM1 to Appendix 3 ‘Template for TAF’
ED Decision 2022/004/R
TAF — EXAMPLES OF ELEMENTS
Non-exhaustive examples of the different elements used in the formulation of TAF are provided below.
TAF — examples of elements Note 1: Consult the ‘Template for TAF’ (Appendix 3 to Annex V (Part-MET) to Regulation (EU) 2017/373) to identify the mandatory (M), the conditional (C) or the optional (O) elements. Note 2: The ranges and resolutions for the numerical elements included in TAF are provided in Appendix 3 to Annex V (Part-MET) to Regulation (EU) 2017/373. Note 3: The row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the TAF. They do not correlate with the ‘Ref.’ column in the ‘Template for TAF’ of Appendix 3 to Annex V (Part-MET) to Regulation (EU) 2017/373. Refer to the ‘Element’ column when cross-referencing. |
||
Ref. |
Element |
Examples |
1 |
Identification of the type of forecast |
TAF TAF AMD TAF COR |
2 |
ICAO location indicator |
YUDO |
3 |
Time of issue of the forecast |
160000Z |
4 |
Identification of a missing forecast |
NIL |
5 |
Days and period of validity of the forecast |
0812/0918 |
6 |
Identification of a cancelled forecast |
CNL |
7 |
Surface wind |
24008KT VRB02KT 19010KT 00000KT 140P99KT 24016G28KT |
8 |
Visibility |
0350 7000 9999 CAVOK (74Replacing visibility, runway visual range, forecast weather and cloud elements, when applicable.) |
9 |
Forecast weather |
RA HZ +TSRA FG –FZDZ PRFG +TSRASN SNRA BR |
10 |
Cloud |
FEW010 OVC020 NSC SCT005 BKN012 SCT008 BKN025CB VV005 VV/// |
11 |
Temperature |
TX25/1013Z TN09/1005Z TX05/2112Z TNM02/2103Z TX22/1115Z TN10/1204Z TX26/1215Z |
12 |
Expected significant changes to one or more of the above elements during the period of validity of the forecast |
TEMPO 0815/0818 25034G50KT TEMPO 2212/2214 17012G26KT 1000 TSRA SCT010CB BKN020 BECMG 3010/3011 00000KT 2400 OVC010 PROB30 1412/1414 0800 FG BECMG 1412/1414 RA TEMPO 2503/2504 FZRA TEMPO 0612/0615 BLSN PROB40 TEMPO 2923/3001 0500 FG FM051230 15008KT 9999 BKN020 BECMG 1618/1620 8000 NSW NSC BECMG 2306/2308 SCT015CB BKN020 |
Regulation (EU) 2021/1338
Template for wind shear warnings Key: M = inclusion mandatory; C = inclusion conditional, whenever applicable. Note 1: The ranges and resolutions for the numerical elements included in wind shear warnings are shown in Appendix 8. Note 2: The explanations for the abbreviations can be found in ICAO Doc 8400 Procedures for Air Navigation Services — ICAO Abbreviations and Codes (PANS-ABC). Note 3: Row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the wind shear warning. |
Ref. |
Element |
Detailed content |
Template(s) |
1 |
Location indicator of the aerodrome (M) |
Location indicator of the aerodrome |
nnnn |
2 |
Identification of the type of message (M) |
Type of message and sequence number |
WS WRNG [n]n |
3 |
Time of origin and validity period (M) |
Day and time of issue and, where applicable, validity period in UTC |
nnnnnn [VALID TL nnnnnn] or [VALID nnnnnn/nnnnnn] |
4 |
IF THE WIND SHEAR WARNING IS TO BE CANCELLED, SEE DETAILS AT THE END OF THE TEMPLATE. |
||
5 |
Phenomenon (M) |
Identification of the phenomenon and its location |
[MOD] or [SEV] WS IN APCH or [MOD] or [SEV] WS [APCH] RWYnnn or [MOD] or [SEV] WS IN CLIMB-OUT or [MOD] or [SEV] WS CLIMB-OUT RWYnnn or MBST IN APCH or MBST [APCH] RWYnnn or MBST IN CLIMB-OUT or MBST CLIMB-OUT RWYnnn |
6 |
Observed, reported or forecast phenomenon (M) |
Identification whether the phenomenon is observed or reported and expected to continue, or forecast |
REP AT nnnn nnnnnnnn or OBS [AT nnnn] or FCST |
7 |
Details of the phenomenon (C) |
Description of the phenomenon causing the issuance of the wind shear warning |
SFC WIND: nnn/nnKT nnnFT – WIND: nnn/nnKT or nnKT LOSS nnNM (or nnKM) FNA RWYnn or nnKT GAIN nnNM (or nnKM) FNA RWYnn |
|
OR |
|
|
8 |
Cancellation of wind shear warning |
Cancellation of wind shear warning referring to its identification |
CNL WS WRNG [n]n nnnnnn/nnnnnn |
GM1 to Appendix 4 ‘Template for wind shear warnings’
ED Decision 2022/004/R
WIND SHEAR WARNINGS — EXAMPLES OF ELEMENTS
Non-exhaustive examples of the different elements used in the formulation of wind shear warnings are provided below.
Wind shear warnings — examples of elements Note 1: Consult the ‘Template for wind shear warnings’ (Appendix 4 to Annex V (Part-MET) to Regulation (EU) 2017/373) to identify the mandatory (M), the conditional (C) or the optional (O) elements. Note 2: The ranges and resolutions for the numerical elements included in wind shear warnings are provided in Appendix 8 to Annex V (Part-MET) to Regulation (EU) 2017/373. Note 3: The row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the wind shear warning. They do not correlate with the ‘Ref.’ column in the ‘Template for wind shear warnings’ of Appendix 4 to Annex V (Part-MET) to Regulation (EU) 2017/373. Refer to the ‘Element’ column when cross-referencing. |
||
Ref. |
Element |
Example |
1 |
Location indicator of the aerodrome |
YUCC |
2 |
Identification of the type of message |
WS WRNG 1 |
3 |
Time of origin and validity period |
211230 VALID TL 211330 221200 VALID 221215/221315 |
4 |
Phenomenon |
WS APCH RWY12 MOD WS RWY34 WS IN CLIMB-OUT MBST APCH RWY26 MBST IN CLIMB-OUT |
5 |
Observed, reported or forecast phenomenon |
REP AT 1510 B747 OBS AT 1205 FCST |
6 |
Details of the phenomenon |
SFC WIND: 320/10KT 200FT-WIND: 360/26KT 30KT LOSS 2NM FNA RWY13 |
|
OR |
|
7 |
Cancellation of the wind shear warning |
CNL WS WRNG 1 211230/211330 |
Regulation (EU) 2021/1338
GM1 to Appendix 5 ‘Template for SIGMET and AIRMET’
ED Decision 2022/004/R
SIGMET AND AIRMET — EXAMPLES OF ELEMENTS
Non-exhaustive examples of the different elements used in the formulation of SIGMET and AIRMET are provided below.
SIGMET and AIRMET — examples of elements Note 1: Consult the ‘Template for SIGMET and AIRMET’ (Appendix 5 to Annex V (Part-MET) to Regulation (EU) 2017/373) to identify the mandatory (M), the conditional (C) or the optional (O) elements. Note 2: The ranges and resolutions for the numerical elements included in SIGMET and AIRMET are provided in Appendix 8 to Annex V (Part-MET) to Regulation (EU) 2017/373. Note 3: The row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the SIGMET and AIRMET. They do not correlate with the ‘Ref.’ column in the ‘Template for SIGMET and AIRMET’ of Appendix 5 to Annex V (Part-MET) to Regulation (EU) 2017/373. Refer to the ‘Element’ column when cross-referencing. |
|||
Ref. |
Element |
SIGMET examples |
AIRMET examples |
1 |
ICAO location indicator of FIR/CTA |
YUCC YUDD |
|
2 |
Identification |
SIGMET U05 SIGMET I12
|
AIRMET 2 AIRMET 19 AIRMET B19 |
3 |
Validity period |
VALID 010000/010400 VALID 221215/221600 VALID 101520/101800 VALID 251600/252200 VALID 152000/160000 VALID 192300/200300 |
|
4 |
ICAO location indicator of MWO |
YUDO– YUSO– |
|
5 |
Name of the FIR/CTA |
YUCC AMSWELL FIR YUDD SHANLON FIR/UIR UIR FIR/UIR YUDD SHANLON CTA |
YUCC AMSWELL FIR/2 YUDD SHANLON FIR |
6 |
IF THE SIGMET IS TO BE CANCELLED, SEE DETAILS AT THE END OF THE TABLE. |
||
7 |
Status indicator |
TEST EXER |
TEST EXER |
8 |
Phenomenon |
OBSC TS OBSC TSGR EMBD TS EMBD TSGR FRQ TS FRQ TSGR SQL TS SQL TSGR
TC GLORIA PSN N10 W060 CB TC NN PSN S2030 E06030 CB
SEV TURB SEV ICE SEV ICE (FZRA) SEV MTW
HVY DS HVY SS
VA ERUPTION MT ASHVAL PSN S15 E073 VA CLD
RDOACT CLD |
SFC WIND 310/40KT
SFC VIS 1500M (BR)
ISOL TS ISOL TSGR OCNL TS OCNL TSGR
MT OBSC
BKN CLD 400/3000FT BKN CLD 1000/5000FT BKN CLD SFC/ABV10000FT
OVC CLD 900/ABV10000FT OVC CLD 1000/5000FT OVC CLD SFC/ABV10000FT
ISOL CB OCNL CB FRQ CB
ISOL TCU OCNL TCU FRQ TCU
MOD TURB MOD ICE MOD MTW |
9 |
Observed or forecast phenomenon |
OBS OBS AT 1210Z FCST FCST AT 1815Z |
|
10 |
Location |
N2020 W07005 N48 E010 S60 W160 S0530 E16530
N OF N50 S OF N5430 N OF S10 S OF S4530 W OF W155 E OF W45 W OF E15540 E OF E09015
N OF N1515 AND W OF E13530 S OF N45 AND N OF N40
N OF LINE S2520 W11510 – S2520 W12010 SW OF LINE N50 W005 – N60 W020 SW OF LINE N50 W020 – N45 E010 AND NE OF LINE N45 W020 – N40 E010
WI N6030 E02550 – N6055 E02500 – N6050 E02630 – N6030 E02550
ENTIRE FIR ENTIRE UIR ENTIRE FIR/UIR
ENTIRE CTA
WI 400KM OF TC CENTRE WI 250NM OF TC CENTRE
WI 30KM OF N6030 E02550 |
|
11 |
Level |
SFC/FL070 FL180 FL050/080 TOP FL390 ABV FL250 TOP ABV FL100 TOP FL500 TOP ABV FL500 TOP BLW FL450 SFC/10000FT 8000FT 6000/12000FT ABV 7000FT TOP ABV 9000FT TOP ABV 10000FT 10000FT/FL250 3000M SFC/3000M 2000/3000M 2000M/FL150 |
|
12 |
Movement or expected movement |
MOV SE MOV NNW MOV E 20KT MOV WSW 20KT (MOV E 40KMH) STNR |
|
13 |
Changes in intensity |
INTSF WKN NC |
|
14 |
Forecast time |
FCST AT 2200Z |
— |
15 |
TC forecast position |
TC CENTRE PSN N1030 E16015 TC CENTRE PSN N1015 E15030 CB |
— |
16 |
Forecast position |
N30 W170
N OF N30
S OF S50 AND W OF E170
S OF N46 AND N OF N39
NE OF LINE N35 W020 – N45 W040 SW OF LINE N48 W020 – N43 E010 AND NE OF LINE N43 W020 – N38 E010
WI N20 W090 – N05 W090 – N10 W100 – N20 W100 – N20 W090
ENTIRE FIR ENTIRE UIR ENTIRE FIR/UIR
ENTIRE CTA
NO VA EXP
WI 30KM OF N6030 E02550
WI 150NM OF TC CENTRE |
— |
17 |
Repetition of elements |
AND |
— |
|
OR |
||
18 |
Cancellation of SIGMET/ AIRMET |
CNL SIGMET B04 101200/101600
CNL SIGMET A07 251030/251430 VA MOV TO YUDO FIR |
CNL AIRMET 5 151520/151800 |
Regulation (EU) 2021/1338
GM1 to Appendix 6 ‘Template for advisory for volcanic ash’
ED Decision 2022/004/R
ADVISORY FOR VOLCANIC ASH — EXAMPLES OF ELEMENTS
Non-exhaustive examples of the different elements used in the formulation of advisory for volcanic ash are provided below.
Examples of elements Note 1: Consult the ‘Template for advisory for volcanic ash’ (Appendix 6 to Annex V (Part-MET) to Regulation (EU) 2017/373) to identify the mandatory (M), the conditional (C) or the optional (O) elements. Note 2: The ranges and resolutions for the numerical elements included in advisory for volcanic ash are provided in Appendix 8 to Annex V (Part-MET) to Regulation (EU) 2017/373. Note 3: The row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the advisory for volcanic ash. They do not correlate with the ‘Ref.’ column in the ‘Template for advisory for volcanic ash’ of Appendix 6 to Annex V (Part-MET) to Regulation (EU) 2017/373. Refer to the ‘Element’ column when cross-referencing. |
|||
Ref. |
Element |
Examples |
|
1 |
Identification of the type of message |
VA ADVISORY |
|
2 |
Status indicator |
STATUS:
|
TEST EXER |
3 |
Time of origin |
DTG: |
20080923/0130Z |
4 |
Name of VAAC |
VAAC: |
TOKYO |
5 |
Name of volcano |
VOLCANO: |
KARYMSKY 300130 UNNAMED UNKNOWN |
6 |
Location of volcano |
PSN: |
N5403 E15927 UNKNOWN |
7 |
State or region |
AREA: |
RUSSIA UNKNOWN |
8 |
Summit elevation |
SUMMIT ELEV: |
1536M SFC |
9 |
Advisory number |
ADVISORY NR: |
2008/4 |
10 |
Information source |
INFO SOURCE: |
HIMAWARI-8 KVERT KEMSD |
11 |
Colour code |
AVIATION COLOUR CODE: |
RED |
12 |
Eruption details |
ERUPTION DETAILS: |
ERUPTION AT 20080923/0000Z FL300 REPORTED
NO ERUPTION – RE-SUSPENDED VA (117To be included (as free text))
UNKNOWN |
13 |
Time of observation (or estimation) of volcanic ash clouds |
OBS VA DTG: |
23/0100Z |
14 |
Observed or estimated volcanic ash clouds |
OBS VA CLD: |
FL250/300 N5400 E15930 – N5400 E16100 – N5300 E15945 – N5400 E15930 MOV SE 20KT SFC/FL200
N5130 E16130 – N5130 E16230 – N5230 E16230 – N5230 E16130 MOV SE 15KT
TOP FL240 MOV W 40KMH
VA NOT IDENTIFIABLE FM SATELLITE DATA
WIND FL050/070 180/24KT |
15 |
Forecast height and position of the volcanic ash clouds (+6 HR) |
FCST VA CLD +6 HR: |
23/0700Z
FL250/350 N5130 E16030 – N5130 E16230 – N5330 E16230 – N5330 E16030 SFC/FL180 N4830 E16330 – N4830 E16630 – N5130 E16630 – N5130 E16330
NO VA EXP
NOT AVBL
NOT PROVIDED |
16 |
Forecast height and position of the volcanic ash clouds (+12 HR) |
FCST VA CLD +12 HR: |
23/1300Z
SFC/FL270 N4830 E16130 – N4830 E16600 – N5300 E16600 – N5300 E16130 – N4830 E16130
NO VA EXP
NOT AVBL
NOT PROVIDED |
17 |
Forecast height and position of the volcanic ash clouds (+18 HR) |
FCST VA CLD +18 HR: |
23/1900Z
NO VA EXP
NOT AVBL
NOT PROVIDED |
18 |
Remarks |
RMK: |
LATEST REP FM KVERT (0120Z) INDICATES ERUPTION HAS CEASED. TWO DISPERSING VA CLD ARE EVIDENT ON SATELLITE IMAGERY
RE-SUSPENDED VA (118To be included (as free text) where space in the Remarks section allows.)
NIL |
19 |
Next advisory |
NXT ADVISORY: |
20080923/0730Z
NO LATER THAN nnnnnnnn/nnnnZ
NO FURTHER ADVISORIES
WILL BE ISSUED BY nnnnnnnn/nnnnZ |
Regulation (EU) 2021/1338
GM1 to Appendix 7 ‘Template for advisory for tropical cyclones’
ED Decision 2022/004/R
ADVISORY FOR TROPICAL CYCLONES — EXAMPLES OF ELEMENTS
Non-exhaustive examples of the different elements used in the formulation of advisory for tropical cyclones are provided below.
Tropical cyclone advisory — examples of elements Note 1: Consult the ‘Template for advisory for tropical cyclones’ (Appendix 7 to Annex V (Part-MET) to Regulation (EU) 2017/373) to identify the mandatory (M), the conditional (C) or the optional (O) elements. Note 2: The ranges and resolutions for the numerical elements included in tropical cyclone advisory are provided in Appendix 8 to Annex V (Part-MET) to Regulation (EU) No 2017/373. Note 3: The row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the advisory for tropical cyclones. They do not correlate with the ‘Ref.’ column in the ‘Template for advisory for tropical cyclones’ of Appendix 7 to Annex V (Part-MET) to Regulation (EU) 2017/373. Refer to the ‘Element’ column when cross-referencing. |
|||
Ref. |
Element |
Examples |
|
1 |
Identification of the type of message |
TC ADVISORY |
|
2 |
Status indicator |
STATUS: |
TEST EXER |
3 |
Time of origin |
DTG: |
20040925/1900Z |
4 |
Name of TCAC |
TCAC: |
YUFO MIAMI |
5 |
Name of tropical cyclone |
TC: |
GLORIA |
6 |
Advisory number |
ADVISORY NR: |
2004/13 |
7 |
Observed position of the centre |
OBS PSN: |
25/1800Z N2706 W07306 |
8 |
Observed CB cloud |
CB: |
WI 250NM OF TC CENTRE TOP FL500 NIL |
9 |
Direction and speed of movement |
MOV: |
NW 20KMH |
10 |
Changes in intensity |
INTST CHANGE: |
INTSF |
11 |
Central pressure |
C: |
965HPA |
12 |
Maximum surface wind |
MAX WIND: |
43KT |
13 |
Forecast of centre position (+6 HR) |
FCST PSN +6 HR: |
25/2200Z N2748 W07350 |
14 |
Forecast of maximum surface wind |
FCST MAX WIND +6 HR: |
43KT |
15 |
Forecast of centre position (+12 HR) |
FCST PSN +12 HR: |
26/0400Z N2830 W07430 |
16 |
Forecast of maximum surface wind |
FCST MAX WIND +12 HR: |
43KT |
17 |
Forecast of centre position (+18 HR) |
FCST PSN +18 HR: |
26/1000Z N2852 W07500 |
18 |
Forecast of maximum surface wind |
FCST MAX WIND +18 HR: |
41KT |
19 |
Forecast of centre position (+24 HR) |
FCST PSN +24 HR: |
26/1600Z N2912 W07530 |
20 |
Forecast of maximum surface wind |
FCST MAX WIND +24 HR: |
39KT |
21 |
Remarks |
RMK: |
NIL |
22 |
Expected time of issuance of next advisory |
NXT MSG: |
20040925/2000Z |
Regulation (EU) 2021/1338
Ranges and resolutions for the numerical elements included in volcanic ash advisory, tropical cyclone advisory, SIGMET, AIRMET, aerodrome and wind shear warnings Note: Row numbers in the ‘Ref.’ column are included only for clarity and ease of reference, and are not part of the template. |
||||
Ref. |
Elements |
Range |
Resolution |
|
1 |
Summit elevation: |
FT |
000–27 000 |
1 |
|
|
M |
000–8 100 |
1 |
2 |
Advisory number: |
for VA (index) (1) |
000–2 000 |
1 |
|
|
for TC (index) (1) |
00–99 |
1 |
3 |
Maximum surface wind: |
KT |
00–99 |
1 |
4 |
Central pressure: |
hPa |
850–1 050 |
1 |
5 |
Surface wind speed: |
KT |
30–99 |
1 |
6 |
Surface visibility: |
M |
0000–0750 |
50 |
|
|
M |
0800–5 000 |
100 |
7 |
Cloud: height of base: |
FT |
000–1 000 |
100 |
8 |
Cloud: height of top: |
FT |
000–9 900 |
100 |
|
|
FT |
10 000–60 000 |
1000 |
9 |
Latitudes: |
° (degrees) |
00–90 |
1 |
|
|
(minutes) |
00–60 |
1 |
10 |
Longitudes: |
° (degrees) |
000–180 |
1 |
|
|
(minutes) |
00–60 |
1 |
11 |
Flight levels: |
|
000–650 |
10 |
12 |
Movement: |
KMH |
0–300 |
10 |
|
|
KT |
0–150 |
5 |
(1) Non-dimensional.
